- Heavy-duty double socket incorporates a through design which can tighten nuts on long bolts or all-thread rod without bottoming out.
- Double socket permits use on either 5/8″ or 3/4″ Heavy Hex Nuts without changing sockets. Also eliminates common misplacement of loose sockets and introduction of dirt into the mechanism while changing sockets in the field.
- Mechanism design allows short stroke operation.

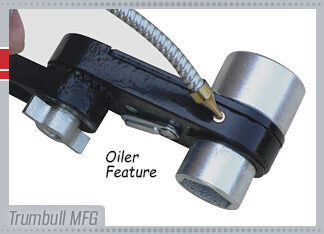

- Heavy-duty ratchet mechanism is lubricated and enclosed in a sealed ductile iron casting to prevent debris from jamming.
- Wrench is 16″ O.A.L.
- Painted black.
LARGE SOCKET
fits heavy hex nuts on 3/4″ bolts, used on 4″ thru 24″ Mechanical Joints.
SMALL SOCKET
fits heavy hex nuts on 5/8″ blots used on clamps, couplings, saddles and 3″ Mechanical Joints
| Trumbull Item No. | Large Socket | Small Socket | Large Socket Fits Hex Size | Small Socket Fits Hex Size | Example of Large Socket Applications | Example of Small Socket Applications | Product Weight |
|---|---|---|---|---|---|---|---|
| 364-9984 | 1-1/4" | 1-1/16" | 3/4" Heavy | 5/8" Heavy | 4" thru 24" MJ Ftgs., 3/4" Hex Bolts with Heavy Hex | 3" MJ Ftgs., Cast Couplings, Clamps, Tapping Sleeves | 4.75 lbs. |
| 364-9955 | 36mm | 30mm | M24 | M20 | 400mm - 500mm Pipe Flanges | 200mm - 350mm Pipe Flanges | 2.15 KG |
