Probe Rods are Used for Locating Buried Lines.

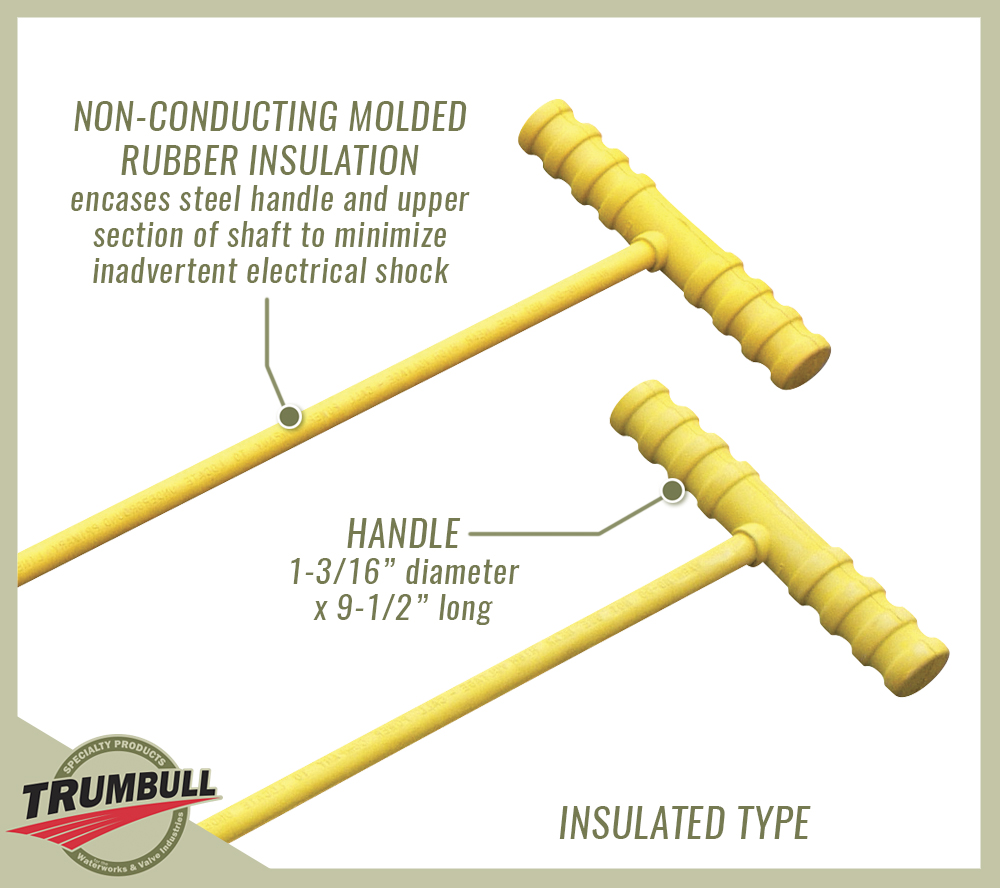

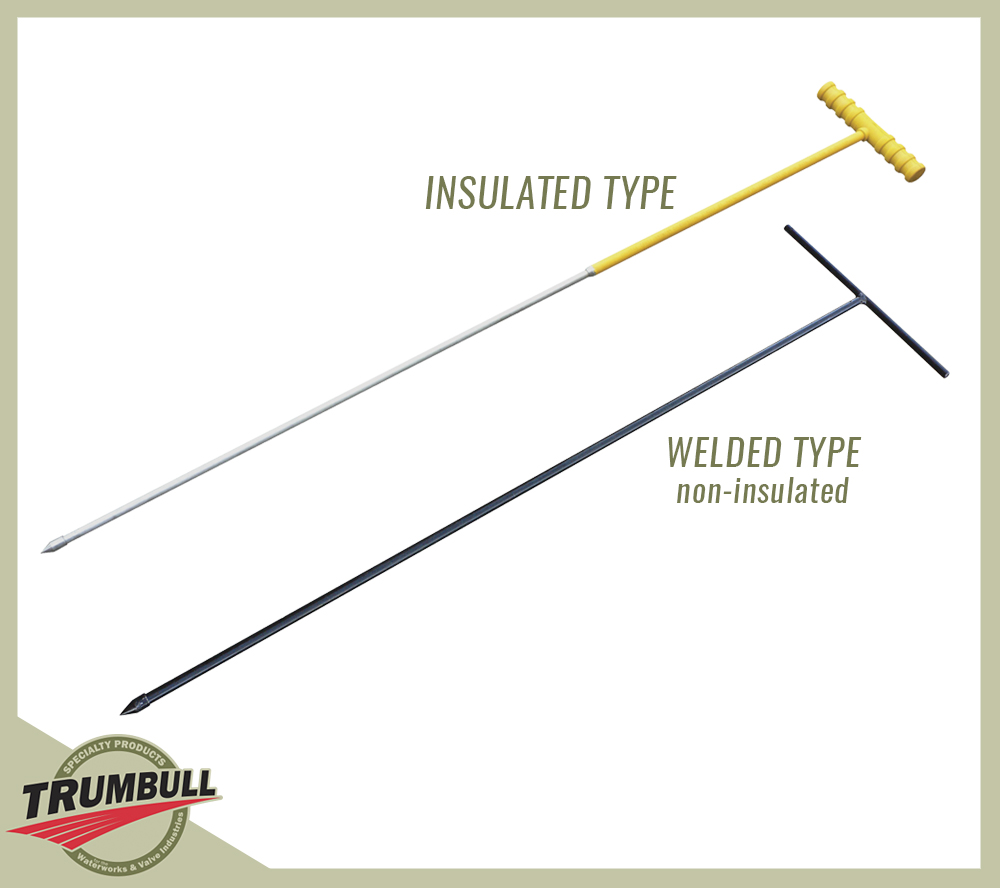

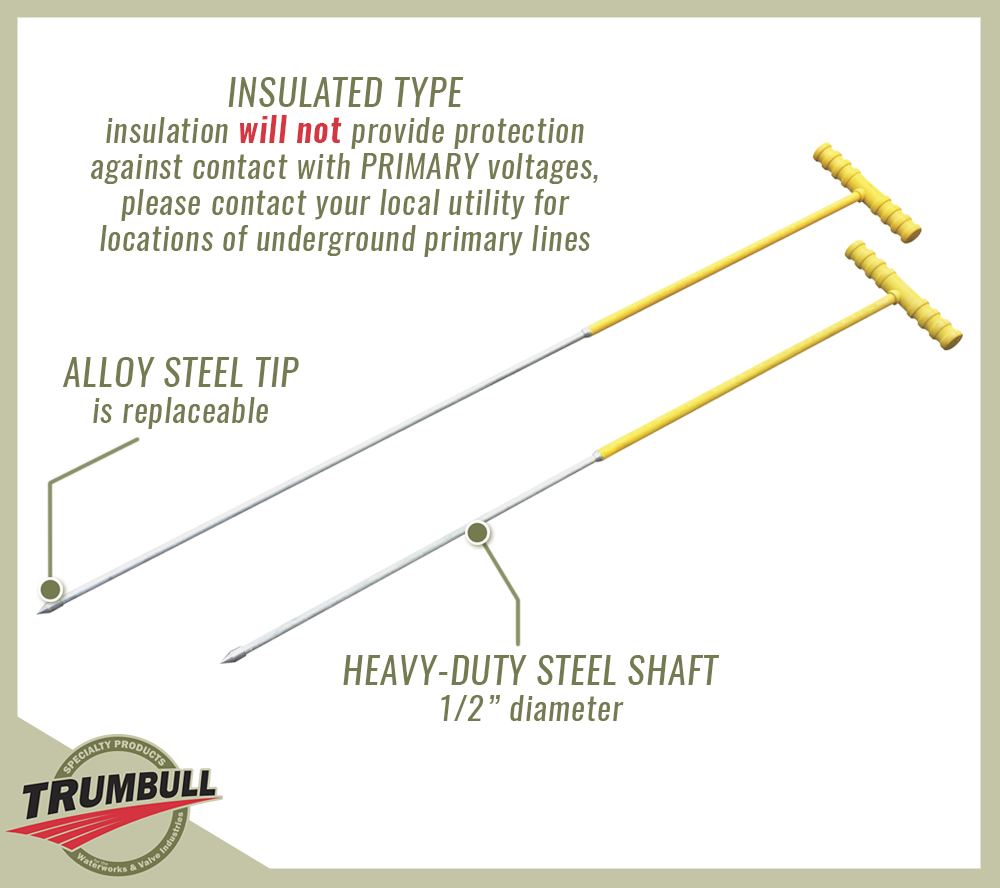

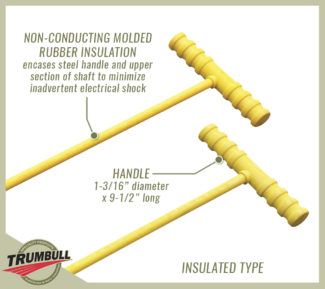

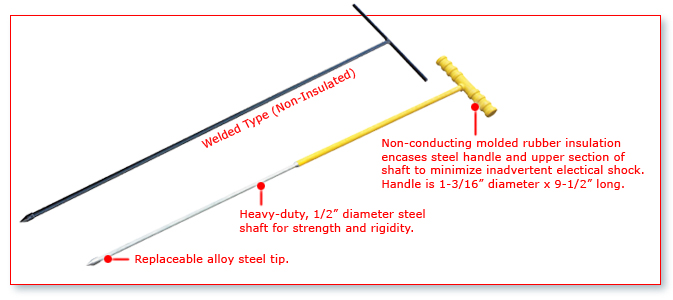

INSULATED TYPE SOIL PROBE RODS
- Feature non-conducting, molded rubber handle and shield on upper section of shaft.
- Molded rubber coverings have been laboratory tested to assure protection against electrical shock from accidental contact with buried SECONDARY electrical lines.
- Replaceable alloy steel tip.
| Trumbull Item No. | Overall Length | Weight |
|---|---|---|
| 367-9080 | 4 ft. | 4.00 lbs. |
| 367-9090 | 5 ft. | 4.25 lbs. |
UNINSULATED “PLUS” TYPE SOIL PROBE RODS
- Feature replaceable tips and handle grips.
- Made from 3/8″ rod.
- Handle grips DO NOT provide insulation from electrical lines.
- Available in both carbon steel and stainless steel models.
- Replaceable stainless steel tips.
Carbon Steel Models
| Trumbull Item No. | Overall Length | Weight |
|---|---|---|
| 367-9082 | 3 ft. | 2.50 lbs. |
| 367-9083 | 4 ft. | 2.80 lbs. |
| 367-9084 | 5 ft. | 3.25 lbs. |
| 367-9085 | 6 ft. | 3.60 lbs. |
Stainless Steel Models
| Trumbull Item No. | Overall Length | Weight |
|---|---|---|
| 367-9086 | 3 ft. | 2.50 lbs. |
| 367-9087 | 4 ft. | 2.80 lbs. |
| 367-9088 | 5 ft. | 3.25 lbs. |
| 367-9089 | 6 ft. | 3.60 lbs. |
ECONOMY TYPE SOIL PROBE RODS
- Feature a shaft and handle made from 1/2″ rod.
- Carbon steel.
- 12″ welded handle.
- Epoxy-applied tips.
| Trumbull Item No. | Overall Length | Weight |
|---|---|---|
| 367-9081 | 4 ft. | 4.00 lbs. |
| 367-9091 | 5 ft. | 4.25 lbs. |
REPLACEMENT ALLOY STEEL TIPS
Alloy Steel Tip for Probe Rod Models
- For Insulated Type Soil Probe Rods only.
| Trumbull Item No. | Weight |
|---|---|
| 367-9095 | 0.05 lbs. |
Alloy Steel Tip for Probe Rod Models
- For Carbon Steel “Plus” Soil Probe Rods.
- For Stainless Steel “Plus” Soil Probe Rods.
| Trumbull Item No. | Weight |
|---|---|
| 367-9097 | 0.10 lbs. |
REPLACEMENT GRIPS
- For Carbon Steel “Plus” Soil Probe Rods.
- For Stainless Steel “Plus” Soil Probe Rods.
| Trumbull Item No. | Weight |
|---|---|
| 367-9096 | 0.10 lbs. |
