FOR LOCATING NON-METALLIC PIPES BURIED UNDERGROUND

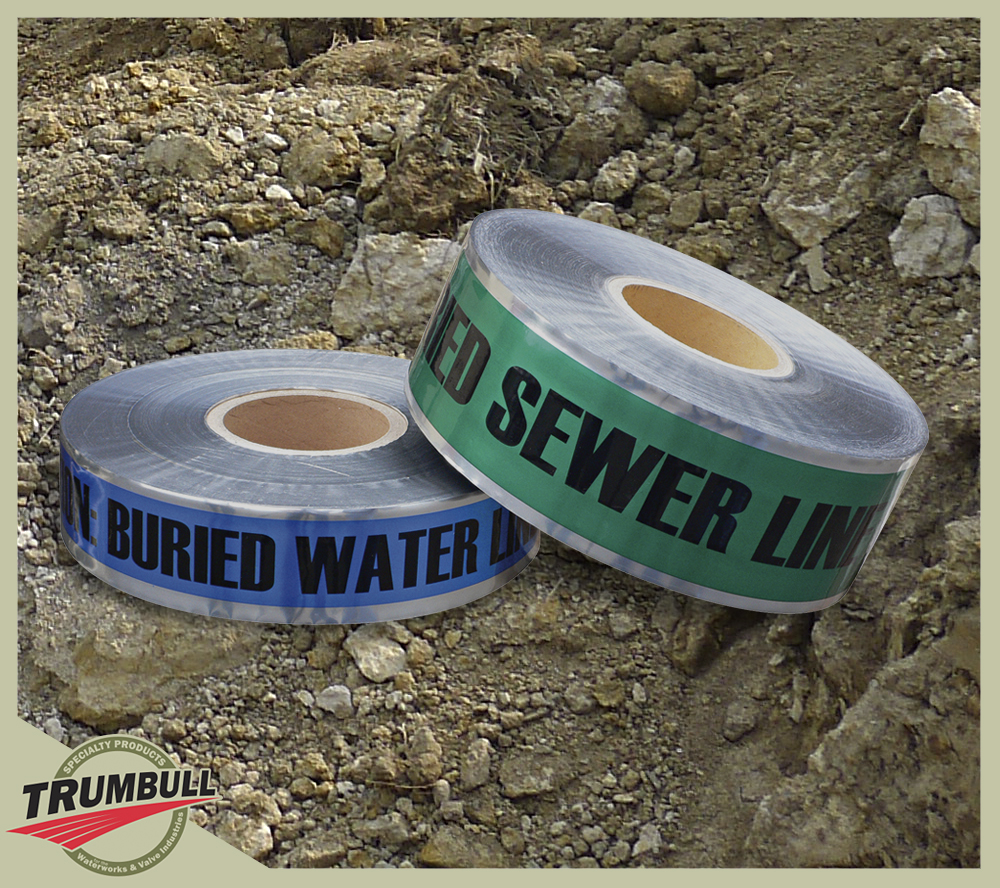

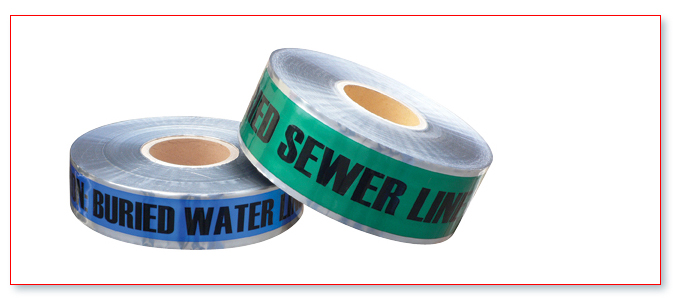

- Tape consists of an aluminum core encased in plastic. Stocked in 1,000 foot rolls in standard industry colors.
- For installations 30″ or shallower, 2″ wide tape should be used. For deeper installations, 3″ tape should be used.
- Use electronic pipe/cable locators for best results (as opposed to valve box or metal locators).
DETECTABLE WARNING TAPES
| Buried Line Type | Width | Color | Trumbull Item No. | Roll Length | Weight Per Roll |
|---|---|---|---|---|---|
| Water Line | 2" | Blue | 364-4950 | 1,000 ft. | 4.00 lbs. |
| Water Line | 3" | Blue | 364-4955 | 1,000 ft. | 5.80 lbs. |
| Water Line | 6" | Blue | 364-4966 | 1,000 ft. | 11.80 lbs. |
| Sewer Line | 2" | Green | 364-4951 | 1,000 ft. | 4.00 lbs. |
| Sewer Line | 3" | Green | 364-4956 | 1,000 ft. | 5.80 lbs. |
| Sewer Line | 6" | Green | 364-4967 | 1,000 ft. | 11.80 lbs. |
| Storm Sewer | 6" | Green | 364-4965 | 1,000 ft. | 11.80 lbs. |
| Reclaimed Water | 3" | Lavender | 364-4958 | 1,000 ft. | 5.80 lbs. |
| Reclaimed Water | 6" | Lavender | 364-4968 | 1,000 ft. | 11.80 lbs. |
| Gas | 3" | Yellow | 364-4972 | 1,000 ft. | 5.80 lbs. |
| Gas | 6" | Yellow | 364-4977 | 1,000 ft. | 11.80 lbs. |
| Chemical | 3" | Yellow | 364-4971 | 1,000 ft. | 5.80 lbs. |
| Electric | 3" | Red | 364-4970 | 1,000 ft. | 5.80 lbs. |
| Electric | 6" | Red | 364-4975 | 1,000 ft. | 11.80 lbs. |
NON-DETECTABLE WARNING TAPES
| Buried Line Type | Width | Color | Trumbull Item No. | Roll Length | Weight Per Roll |
|---|---|---|---|---|---|
| Water Line | 3" | Blue | 364-4940 | 1,000 ft. | 5.80 lbs. |
| Water Line | 6" | Blue | 364-4948 | 1,000 ft. | 11.80 lbs. |
| Sewer Line | 3" | Green | 364-4945 | 1,000 ft. | 5.80 lbs. |
| Sewer Line | 6" | Green | 364-4949 | 1,000 ft. | 11.80 lbs. |
| “Caution” Barricade | 3" | Yellow | 165-5201 | 1,000 ft. | 2.60 lbs. |
| “Danger” Barricade | 3" | Red | 165-5205 | 1,000 ft. | 2.60 lbs. |
