Available for 3″ through 24″ Pipe!

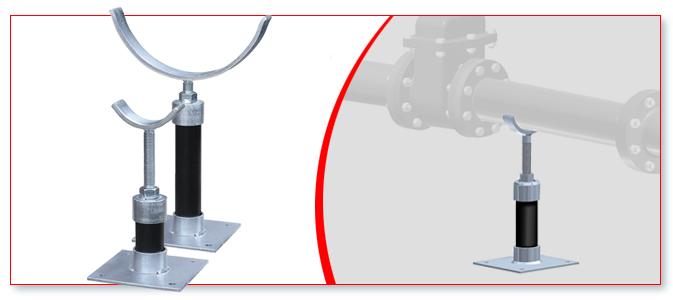

TRUMBULL SADDLE STYLE ADJUSTABLE PIPE SUPPORTS are standard stock saddles that are formed to fit ductile iron pipe diameters; other pipe diameters available upon request. All supports have an electro-galvanized finish. Other coatings, such as epoxy paint, may be available; please inquire as to availability. Optional 316 stainless steel supports also available.
Assembly Includes:
- Large base (8″ x 8″)
- Saddle assembly and height-adjustment cap, which allows for up to 3″ of final adjustment
Customer Supplied Components:
- Extension pipe, at the length required (if required, Trumbull can supply pipe that is cut-to-length)
CARBON STEEL
Base Plate: ASTM A36 sheet steel
Threaded Rod: ASTM A307 rolled threads
Base Cup: ASTM A53 tubing
Adjustment Cap: ASTM A53 tubing
Saddle: ASTM A36
| Pipe Size | Trumbull Item No. | Saddle Size | Threaded Rod | Base Plate | Extension Pipe Size | Min. Height from Floor |
|---|---|---|---|---|---|---|
| 3" | 364-5850 | 1-1/2" x 3/8" | 1"-8 NC x 6" | 1/4" x 8" x 8" | 2" Sch 40 | 7" |
| 4" | 364-5851 | 1-1/2" x 3/8" | 1"-8 NC x 6" | 1/4" x 8" x 8" | 2" Sch 40 | 7" |
| 6" | 364-5852 | 2" x 1/2" | 1"-8 NC x 6" | 1/4" x 8" x 8" | 2" Sch 40 | 7" |
| 8" | 364-5853 | 2" x 1/2" | 1"-8 NC x 6" | 1/4" x 8" x 8" | 2" Sch 40 | 7" |
| 10" | 364-5854 | 2" x 1/2" | 1"-8 NC x 6" | 1/4" x 8" x 8" | 2" Sch 40 | 7" |
| 12" | 364-5855 | 2" x 1/2" | 1"-8 NC x 6" | 1/4" x 8" x 8" | 2" Sch 40 | 7" |
| 14" | 364-5856 | 3" x 5/8" | 1-1/2"-6 NC x 6" | 1/2" x 8" x 8" | 3" Sch 40 | 10" |
| 16" | 364-5857 | 3" x 5/8" | 1-1/2"-6 NC x 6" | 1/2" x 8" x 8" | 3" Sch 40 | 10" |
| 18" | 364-5858 | 4" x 3/4" | 2"-4 NC x 6" | 1/2" x 8" x 8" | 4" Sch 40 | 10" |
| 20" | 364-5859 | 4" x 3/4" | 2"-4 NC x 6" | 1/2" x 8" x 8" | 4" Sch 40 | 10" |
| 24" | 364-5860 | 4" x 3/4" | 2"-4 NC x 6" | 1/2" x 8" x 8" | 4" Sch 40 | 10" |
304 STAINLESS STEEL
Base Plate: ASTM 304 sheet steel
Threaded Rod: ASTM 304 rolled threads
Base Cup: ASTM 304 tubing
Adjustment Cap: ASTM 304 tubing
Saddle: ASTM 304
| Pipe Size | Trumbull Item No. | Saddle Size | Threaded Rod | Base Plate | Extension Pipe Size | Min. Height from Floor |
|---|---|---|---|---|---|---|
| 3" | 364-5830 | 1-1/2" x 3/8" | 1"-8 NC x 6" | 1/4" x 8" x 8" | 2" Sch 40 | 7" |
| 4" | 364-5831 | 1-1/2" x 3/8" | 1"-8 NC x 6" | 1/4" x 8" x 8" | 2" Sch 40 | 7" |
| 6" | 364-5832 | 2" x 1/2" | 1"-8 NC x 6" | 1/4" x 8" x 8" | 2" Sch 40 | 7" |
| 8" | 364-5833 | 2" x 1/2" | 1"-8 NC x 6" | 1/4" x 8" x 8" | 2" Sch 40 | 7" |
| 10" | 364-5834 | 2" x 1/2" | 1"-8 NC x 6" | 1/4" x 8" x 8" | 2" Sch 40 | 7" |
| 12" | 364-5835 | 2" x 1/2" | 1"-8 NC x 6" | 1/4" x 8" x 8" | 2" Sch 40 | 7" |
| 14" | 364-5836 | 3" x 5/8" | 1-1/2"-6 NC x 6" | 1/2" x 8" x 8" | 3" Sch 40 | 10" |
| 16" | 364-5837 | 3" x 5/8" | 1-1/2"-6 NC x 6" | 1/2" x 8" x 8" | 3" Sch 40 | 10" |
| 18" | 364-5838 | 4" x 3/4" | 2"-4 NC x 6" | 1/2" x 8" x 8" | 4" Sch 40 | 10" |
| 20" | 364-5839 | 4" x 3/4" | 2"-4 NC x 6" | 1/2" x 8" x 8" | 4" Sch 40 | 10" |
| 24" | 364-5840 | 4" x 3/4" | 2"-4 NC x 6" | 1/2" x 8" x 8" | 4" Sch 40 | 10" |
