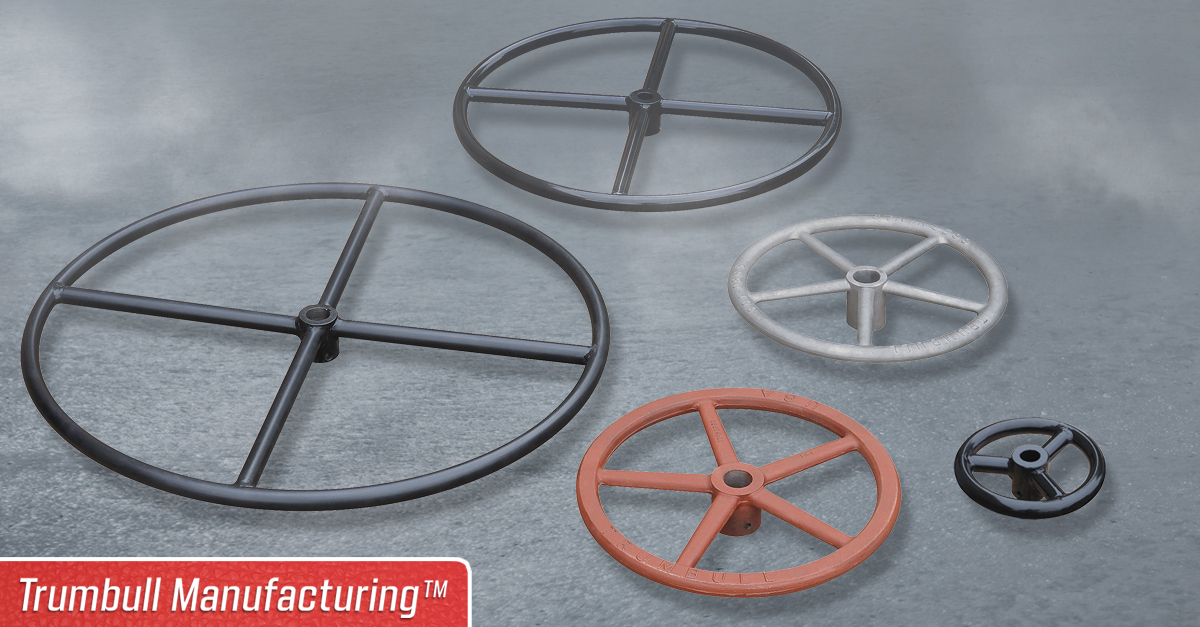

Cast Handwheels
| Trumbull Item No. | Material | O.D. | Description | Weight |
|---|---|---|---|---|
| 367-4961 | Ductile | 14" | Bored to dia. required, up to 2" I.D. | 11.60 lbs. |
| 367-4962 | Ductile | 14" | Socket to fit 2" square AWWA nut | 15.15 lbs. |
| 367-2043 | 316 SS | 14" | 1" Rod made of cast 316 SS | 11.20 lbs. |
| 367-2044 | 316 SS | 14" | 1" Pipe made of cast 316 SS | 11.20 lbs. |
| 367-2046 | 316 SS | 14" | 1-1/4" Rod made of cast 316 SS | 11.20 lbs. |
| 367-2047 | 316 SS | 14" | 1-1/4" Pipe made of cast 316 SS | 11.20 lbs. |
Carbon Steel Tubular Handwheels
| Trumbull Item No. | Diameter | Bore | Weight |
|---|---|---|---|
| 367-2055 | 8" | 1.010" | 3.40 lbs. |
| 367-2054 | 12" | 1.010" | 4.35 lbs. |
| 367-2056 | 18" | 1.010" | 5.45 lbs. |
| 367-2057 | 24" | 1.010" | 5.70 lbs. |
| 367-2058 | 30" | 1.010" | 10.30 lbs. |
Stainless Steel Tubular Handwheels
| Trumbull Item No. | Diameter | Bore | Weight |
|---|---|---|---|
| 391-0941 | 8" | 1.010" | 3.40 lbs. |
| 391-0942 | 14" | 1.010" | 4.90 lbs. |
| 391-0943 | 18" | 1.010" | 5.45 lbs. |
| 391-0944 | 24" | 1.010" | 5.70 lbs. |
