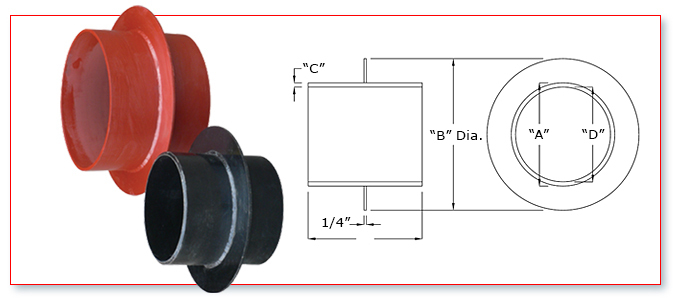

Trumbull Wall Sleeves consist of a 1/4″ thick steel flange continuously welded, both sides, to a heavy steel cylinder. Wall Sleeves are supplied with a rust preventative coating on all surfaces; special coatings are available upon request. Made-to-order in the USA.

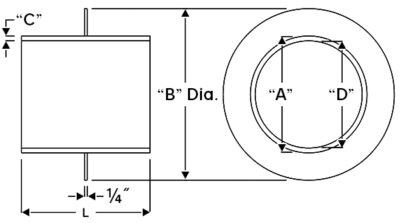

| Item No. | "A" Diameter | "B" Diameter | "C" Wall Thickness | "D" I.D. |
|---|---|---|---|---|
| TWS-0250-L | 2.88" | 6.88" | 0.203" | 2.47" |
| TWS-0300-L | 3.50" | 7.50" | 0.216" | 3.07" |
| TWS-0400-L | 4.50" | 8.50" | 0.237" | 4.03" |
| TWS-0600-L | 6.63" | 10.63" | 0.280" | 6.07" |
| TWS-0800-L | 8.63" | 12.63" | 0.322" | 7.98" |
| TWS-1000-L | 10.75" | 14.75" | 0.365" | 10.02" |
| TWS-1200-L | 12.75" | 16.75" | 0.375" | 12.00" |
| TWS-1400-L | 14.00" | 18.00" | 0.375" | 13.25" |
| TWS-1600-L | 16.00" | 20.00" | 0.375" | 15.25" |
| TWS-1800-L | 18.00" | 22.00" | 0.375" | 17.25" |
| TWS-2000-L | 20.00" | 24.00" | 0.375" | 19.25" |
| TWS-2200-L | 22.00" | 26.00" | 0.375" | 21.25" |
| TWS-2400-L | 24.00" | 28.00" | 0.375" | 23.25" |
| TWS-3000-L | 30.00" | 34.00" | 0.375" | 29.25" |
| TWS-3600-L | 36.00" | 40.00" | 0.375" | 35.25" |
| TWS-4200-L | 42.00" | 46.00" | 0.375" | 41.25" |
| TWS-4800-L | 48.00" | 52.00" | 0.375" | 47.25" |
